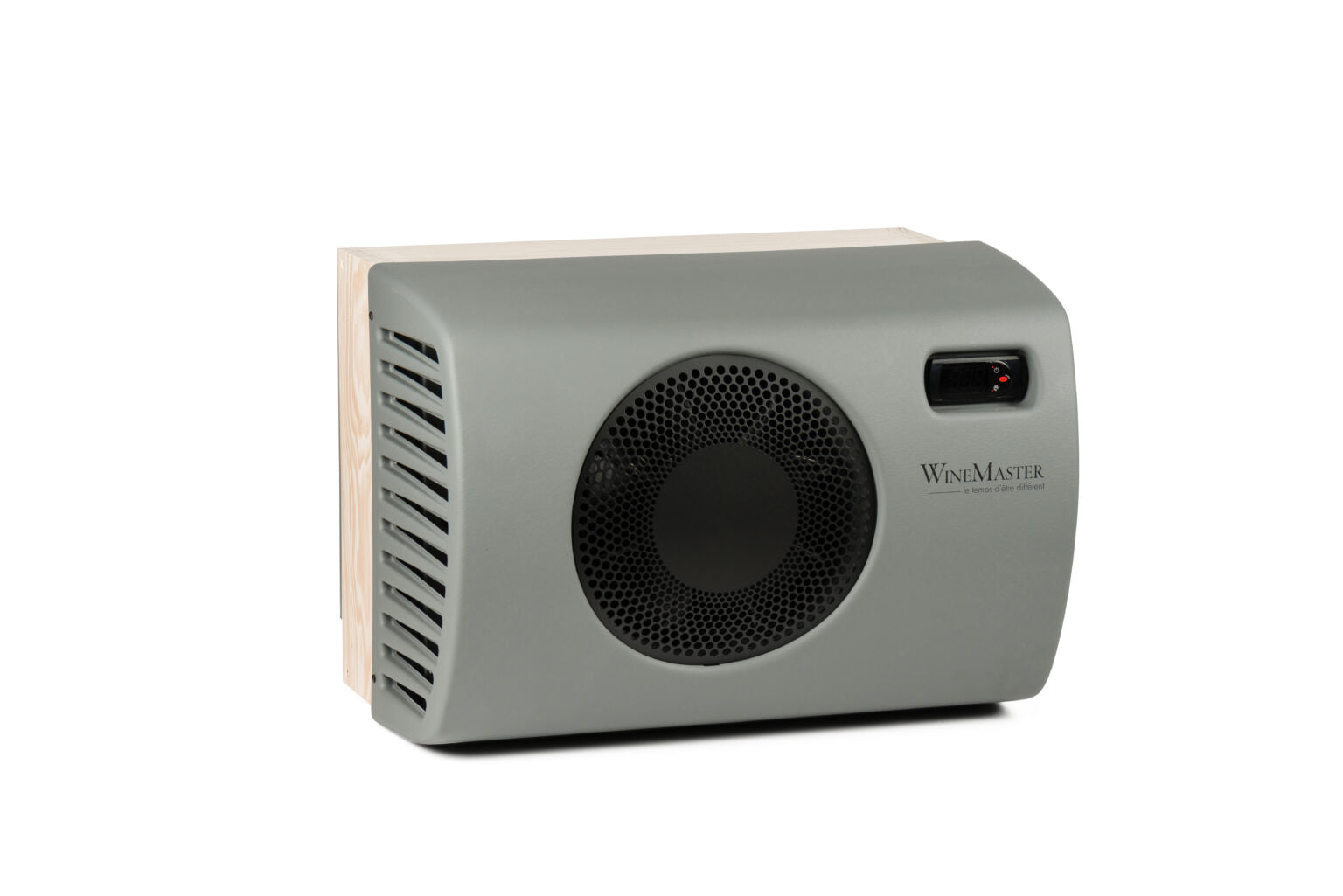

WineMaster C25 - up to 25m3

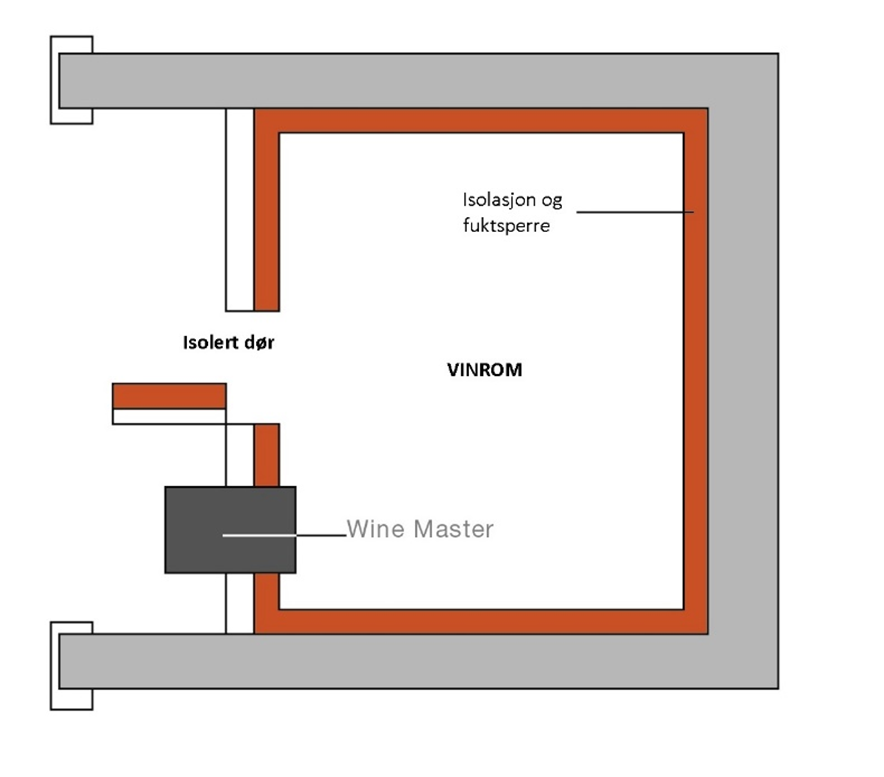

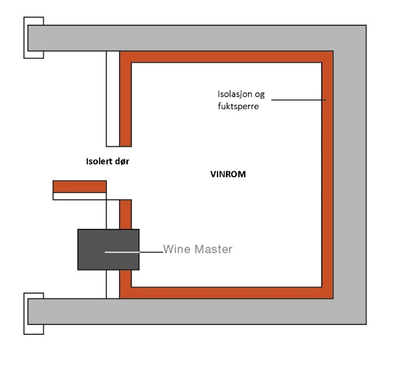

NB! For new installations the wall cannot be deeper than 150 mm, for modifications max. 220mm, you need the warm side to go out into a room of a certain size for the unit to have sufficient air. Remember the drain for condensation water. A wine room should be built like a cold room, either in wood
or with cold room elements. Combine with glass door
and gas field. Use a moisture barrier on the warm side according to NS. When it is built of wood.
Glass surfaces in the room must be sealed in single-family homes.
Materials such as plaster and MDF are not recommended in a wine room,
this is because of the moisture these materials attract.

NB! If one or more walls in the wine room are made of brick, stone,
uninsulated glass or other uninsulated materials, these walls should
repaired before a wine cooler is put into use. If you are wondering
whether your room can be used for wine storage. Contact
our sales department.

NB! Cold rooms built of wood: Make sure the room is built
according to NS (Norwegian standard) or better. NS indicates the minimum standard
for self-built cold rooms, which describes
correct construction of cold rooms built of wood. There are requirements for insulation in the floor, walls and ceiling, as well as a moisture barrier on the warm side of the insulation. When using glass, we recommend a u-value of 1.2 or better. Ready-made wine room panels with a hook system in the walls, floor and ceiling are always recommended for the best possible result. They are tailor-made by us and can be easily installed in a short time, only using the included key.
